SCREEN WALL SYSTEM

Screen Wall System™ panels and walls are custom manufactured to your supplied specifications using our proprietary and patented extrusions and processes. Individual screen panels are available as small as 9” x 9” and screen walls are available up to 16’ x 16’. Almost limitless design options are available and all of our standard layouts can be customized. Several standard and custom finishes are available as well as glass winterization inserts. We ship fully assembled products and raw goods worldwide.

GALLERY
SCREEN WALL SYSTEM™ QUALITY …

Screen Wall System™ panels are made of high-quality aluminum and virtually unbreakable. We conduct laboratory (controlled) and in-house (real world) testing on our panels.

Extrusion has showed: 135 MPH wind load testing, 400 LB static load to frame and 44 LB static load onto screen fabric.

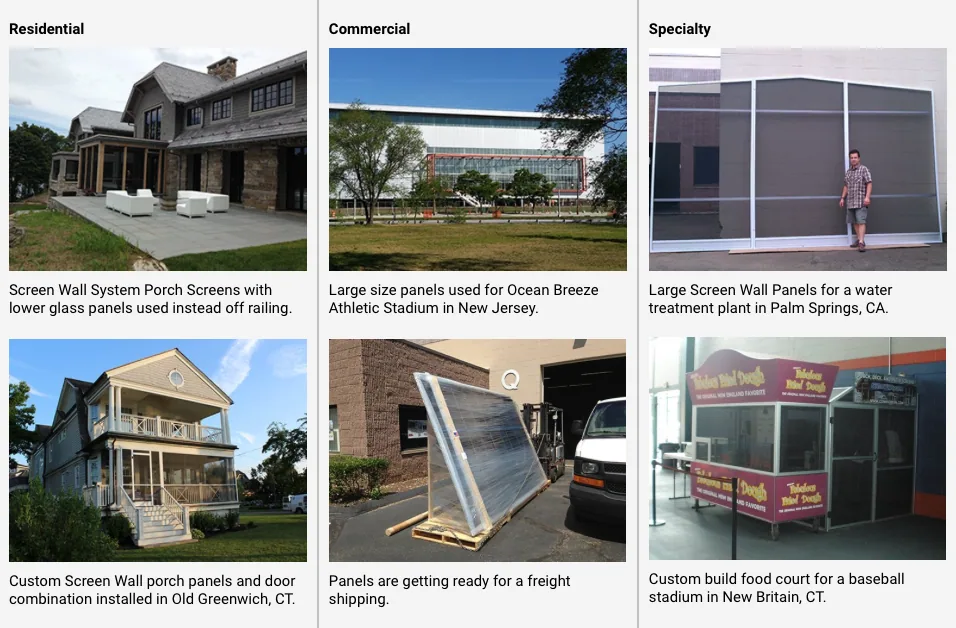

SCREEN WALL SYSTEM™ APPLICATIONS

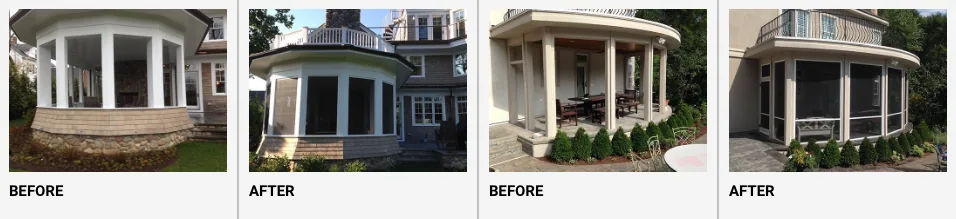

SCREEN WALL SYSTEM™ BEFORE AND AFTER PICTURES

SCREEN WALL SYSTEM™ COMPONENTS LIST AND PRICING

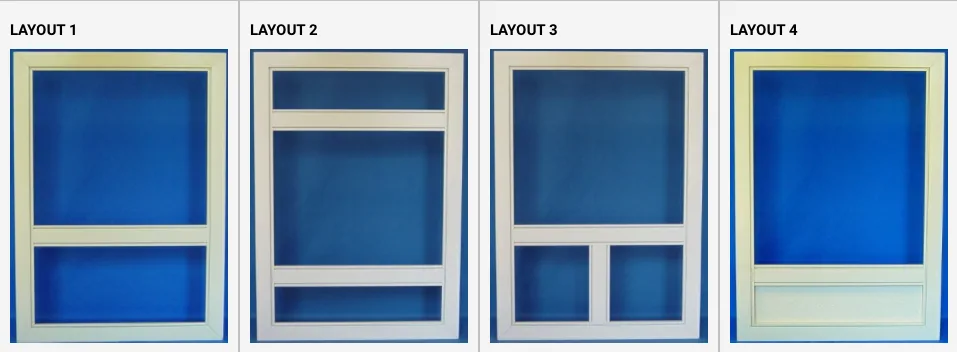

SCREEN WALL SYSTEM™ STANDARD LAYOUTS

Seven standard layouts are available. Since all are built to order, you are free to move or add Divider bars to best suite your needs -or- design your own fully custom layout. Review “Standard Specifications & Submittal Package” for specifications, limitations, etc.

SCREEN WALL SYSTEM™ DOOR SLABS
Any Screen Wall System™ panel can be used as a door slab. We offer a “Standard” slab – see “Standard Specifications & Submittal Package”  for “Standard” slab specifications. We recommend that you fully frame out the door jamb and hang the slab independent of any Screen Wall System™ panels or walls. Since all slabs are also custom manufactured to order, like all other panels and walls, you must specify the exact measurement for manufacture.

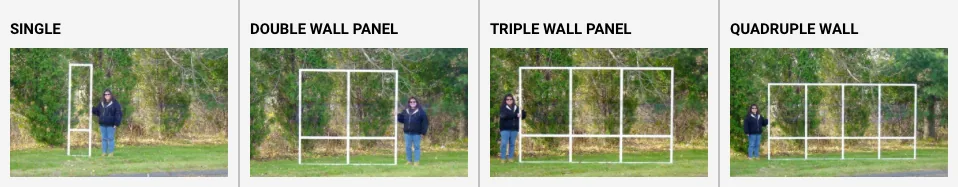

SCREEN WALL SYSTEM™ SCREEN WALL PANELS
A Screen Wall System™ Screen Wall Panel is simply a larger master frame assembly with a Standard or custom Layout repeated within it. There is no limit the number of repetitions allowed. Review “Standard Specifications & Submittal Package”  specifications, limitations.
SCREEN WALL SYSTEM™ FABRIC MATERIALS
Screen Wall System™ panels and walls are available screened with 18×14 .013g charcoal PVC coated fiberglass, 20×20 .008 charcoal coated fiberglass or 16×14 .013g PVC coated polyester. Size restrictions may dictate which material is available for your particular application. Screen may also be installed in a “standard” fashion or in an “upgraded” fashion. Screen installation may also be dictated by sizes ordered. We also stock Phifer BetterVue, UltraVue and SeeVue.
We can also order in any available screen materials, like PollenTec screens, solar screens ….
SCREEN WALL SYSTEM™ FINISHES

We stock White Powder Coat, Bronze Powder Coat and Mill. We also offer full RAL spectrum Powder Coating, Color match Kynar Paint, as well as Anodizing, and Metalizing on a custom, per order basis.

SCREEN WALL SYSTEM™ INSERT
 Screen Wall System™ Panels and Walls will accept winterization dead lite inserts. During the warmest season, you can enjoy the open, airy feeling of an old-fashioned screened porch, bringing in the sights and sounds of summer, day and night, without battling the bugs and mosquitoes. Adding the glass or Acrylic will extend the enjoyment of your room into the spring and fall. The glass will protect the room and furniture from dust, pollen, wind, blowing rain and snow, in addition to serving as an effective sound barrier.
We offer commercial extruded c-sash wrapped Acrylic or Tempered Glass inserts that are available in two thicknesses: 1/8” or 3/16” depending on a desired size. Screen and storm inserts are only visible from the interior view of the screen door or panel. Screen Wall System™ Panels and Walls will accept winterization dead lite inserts. Advanced planning is required since panels must be sized within the limitations of the inserts. Retainer hardware can be installed during manufacture or later after installation.
Please note: that advanced planning is required since panels must be sized within the limitations of the inserts.
  • Maintain the View.
  • Easy Removal and Installation of Screen and Storm inserts.
  • Retainer hardware can be installed during manufacture or later after installation.

SCREEN WALL SYSTEM™ MEASURING AND INSTALLATION
It is very important that you must first determine how you plan to install your panels or walls before you can figure out your required manufacture sizes.
Review the Installation Suggestion Page and see which method would best suit your requirements. Each one contains suggested measuring instructions.
If you are having difficulties while measuring an opening or not sure which is the right solution for you – our specialists can come to your house within the state of Connecticut and help you to do it. Additional charges may apply. Please give us a call to schedule an appointment at (800) 940-1353.
PURCHASE SCREEN WALL SYSTEM™ NOW
Raw materials can be ordered from our Website or by calling our office at (800) 940-1353. In order to purchase built Screen Wall System™ panels, you must first fill out quote form. Once we have received it, will get back to you with pricing as soon as possible.
